# Tesenso Industrial Edge

## Product Datasheet

{% tabs %}
{% tab title="Datenblatt DE" %}
{% file src="/files/VPX68CcSHHNqKrAYTNgc" %}
{% endtab %}

{% tab title="Datasheet EN" %}
{% file src="/files/Om8kneK7VQO7Mmbyxypq" %}
{% endtab %}
{% endtabs %}

{% embed url="<https://youtu.be/Z0Pqvxlyx64>" %}

## **Login to your Device**

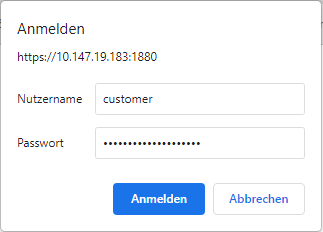

Your Tesenso Industial Edge is normaly in the DHCP mode. You can type the IP on the Display (=Device IP) into your browser&#x20;

EG: 10.147.19.183:1880

{% hint style="info" %}
Important: After the IP add the Port! xxx.xxx.xxx.xx&#x78;**:1880**
{% endhint %}

![](https://3644989493-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MgVxJqlLMh-0vshmfk7%2Fuploads%2FKtBmOcAmtRoiQ38qsN43%2Fimage.png?alt=media\&token=430e2b5b-9fb2-4f49-92ca-a2c0ec4b2b5c)

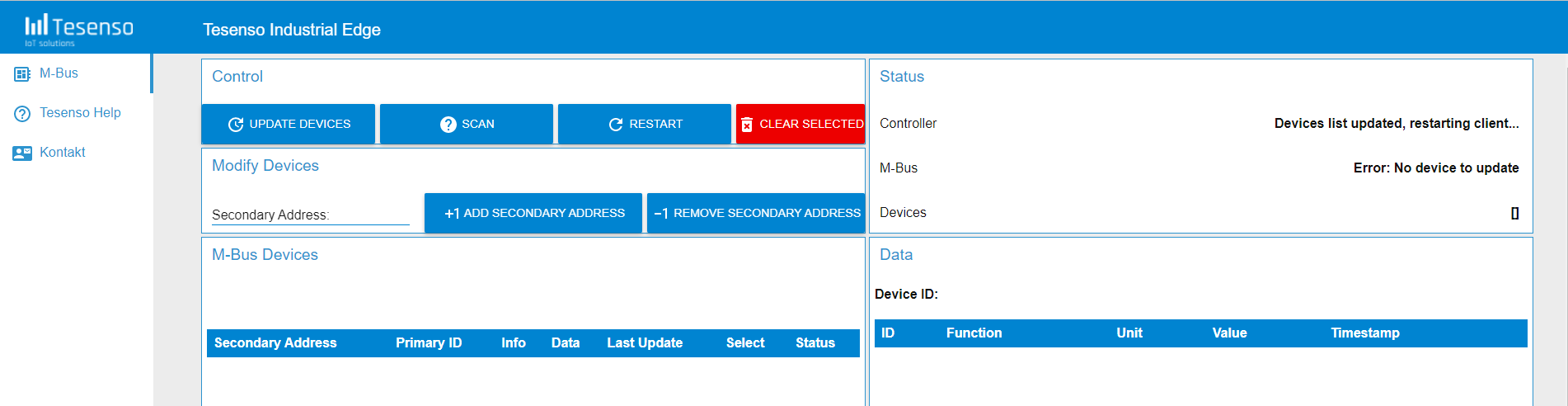

![Mainscreen / Tesenso Industrial Edge](https://3644989493-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MgVxJqlLMh-0vshmfk7%2Fuploads%2FxL3uKCJQudO5qur8KIv5%2Fimage.png?alt=media\&token=b7436a43-ed82-4afb-9088-f5c3e06a2d39)

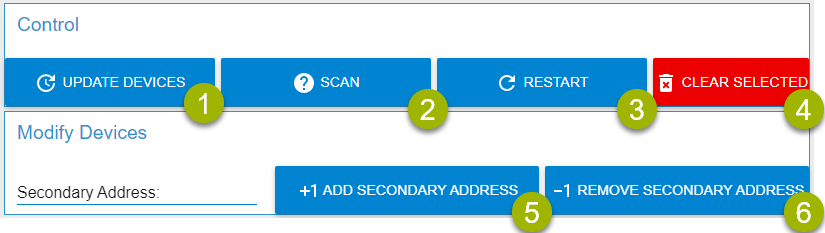

## Controlls / Settings

![](https://3644989493-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MgVxJqlLMh-0vshmfk7%2Fuploads%2FDkCrdTZ1MCKTkWItf5Px%2Fimage.png?alt=media\&token=9f6164a8-669d-4638-bfe3-64c39a9a81cc)

1. **UPDATE DEVICES:** Updates the status of your M-Bus Devices
2. **SCAN:** Make a scan of all M-Bus devices
3. **RESTART**: Make a restart of the M-Bus Controller (in case of problems)
4. **CLEAR SELECTED:** Warning: Deselecting all active M-Bus Devices
5. **ADD SECONDARY ADDRESS**: Allows you to add a M-Bus device, which was not found with the Scan
6. &#x20;**REMOVE SECONDARY ADDRESS:** Allows you to remove a M-Bus device, which was automatically or manually added.&#x20;

## Initial Setup

During commissioning, the first step is to make a scan. Alternatively, the M-Bus devices can also be added via secondary address. Press Button **2**

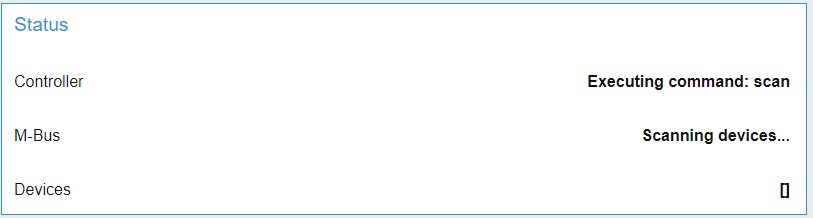

![Scan in Progress](https://3644989493-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MgVxJqlLMh-0vshmfk7%2Fuploads%2FuDgTG1gcsp0fmErpbNGg%2Fimage.png?alt=media\&token=6e6ce0ca-94b1-433d-9e5a-71e2bcbe4584)

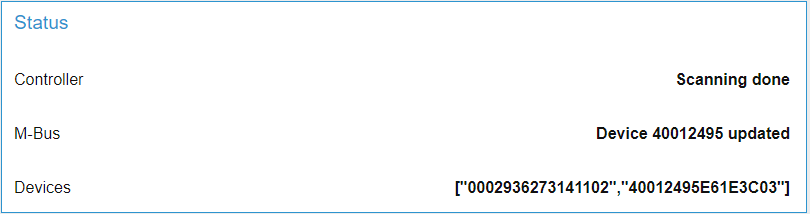

![Scan completed: Two M-Bus Devices found](https://3644989493-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MgVxJqlLMh-0vshmfk7%2Fuploads%2Fp4NovOnMVn7t61Reuu1j%2Fimage.png?alt=media\&token=45f6fed8-0e63-4d1e-aedb-2d637a211195)

### Check the Result of the scanned M-Bus Devices

Click Button 1 - to Update the status of the Devices

![Result\_ Two Energy Meters: 1x Elictricity and 1x Gas - Meter](https://3644989493-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MgVxJqlLMh-0vshmfk7%2Fuploads%2FVmmLjGGVeZHrNTgJokLd%2Fimage.png?alt=media\&token=074ae121-aed8-4839-91e9-c3f32eeb9c5c)

Check the Payload of the M-Bus device by clicking on the Secondary Address&#x20;

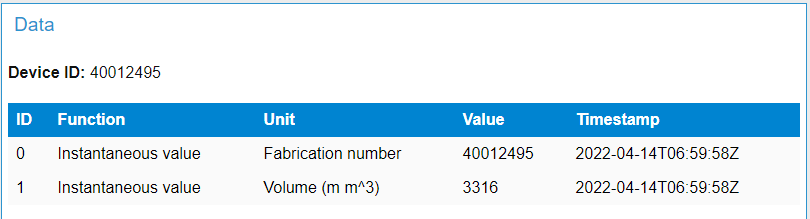

![Payload Gas Meter](https://3644989493-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MgVxJqlLMh-0vshmfk7%2Fuploads%2F49xIZomLqPdgpu5A5nTv%2Fimage.png?alt=media\&token=c73d0f13-0920-4a4d-83ea-84866f43f99d)

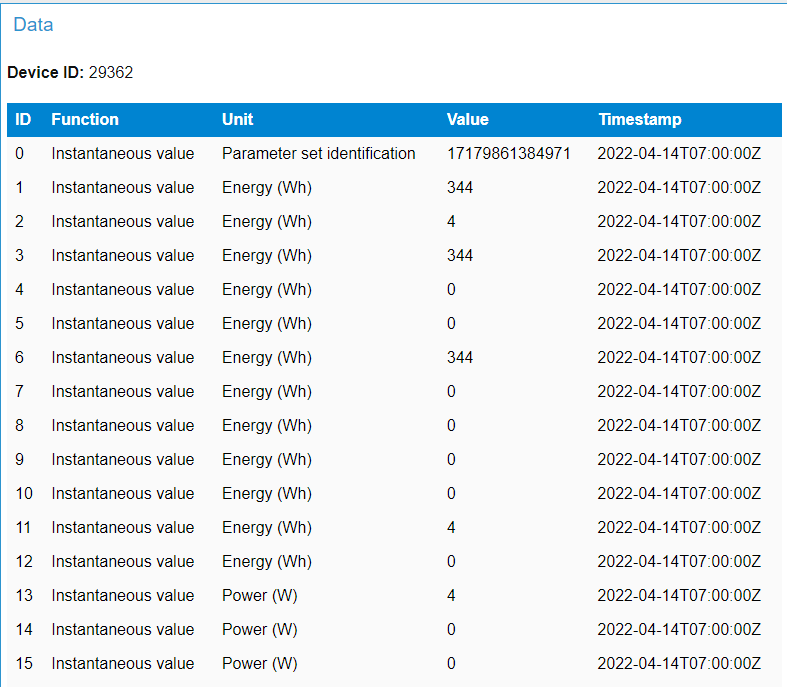

![Payload Electricity Meter](https://3644989493-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MgVxJqlLMh-0vshmfk7%2Fuploads%2F802yaMOFsPTEJzXaPX8G%2Fimage.png?alt=media\&token=0a48fff1-52ef-4adc-ba36-04ba8689cc92)

### Activate the M-Bus Devices to send the data into the Tesenso Cloud &#x20;

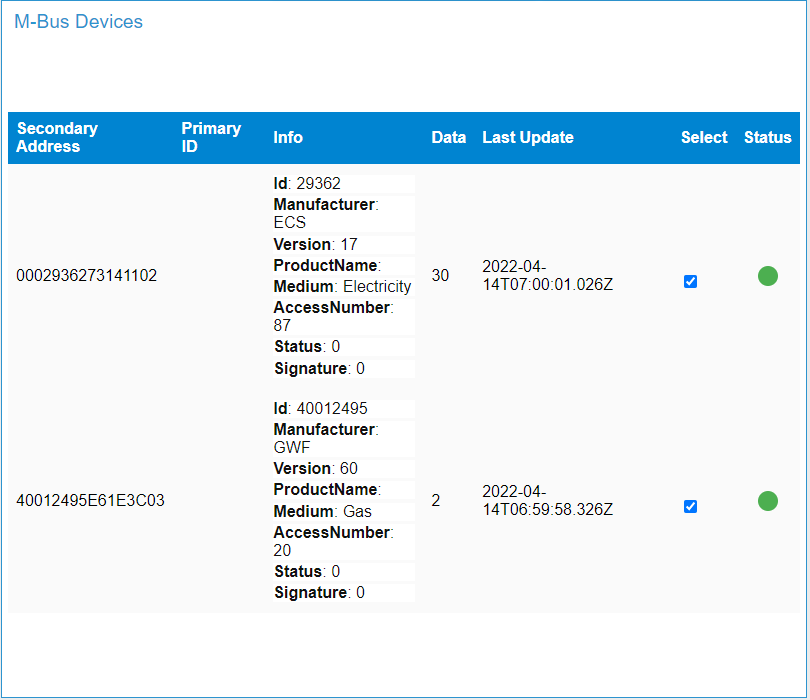

After the payload control, the M-Bus devices still have to be selected- so that the data can be transmitted to the Tesenso Cloud. To do this, simply activate the checkbox. The data will be forwarded instantly.

![](https://3644989493-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-MgVxJqlLMh-0vshmfk7%2Fuploads%2FC5oqFLBU8Xjs2UMiLM5V%2Fimage.png?alt=media\&token=f3ce2738-8484-4d4b-8076-293f04f8adc0)

## Troubleshooting / FAQ

1. **M-Bus Device is not visible after a scan**

   **Solution 1:** Start the scan again, sometimes it takes several attempts\
   **Solution 2:** Add the M-Bus device manually: Enter the complete Secondary Adress in the field and press ADD SECONDARY ADRESS, then UPDATE DEVICES. The device should now be displayed and the payload can be read.\
   **Solution3**: Check the connection / wires from your M-Bus device
